Structural stabilization of a settled foundation at a townhouse building - Highlights:

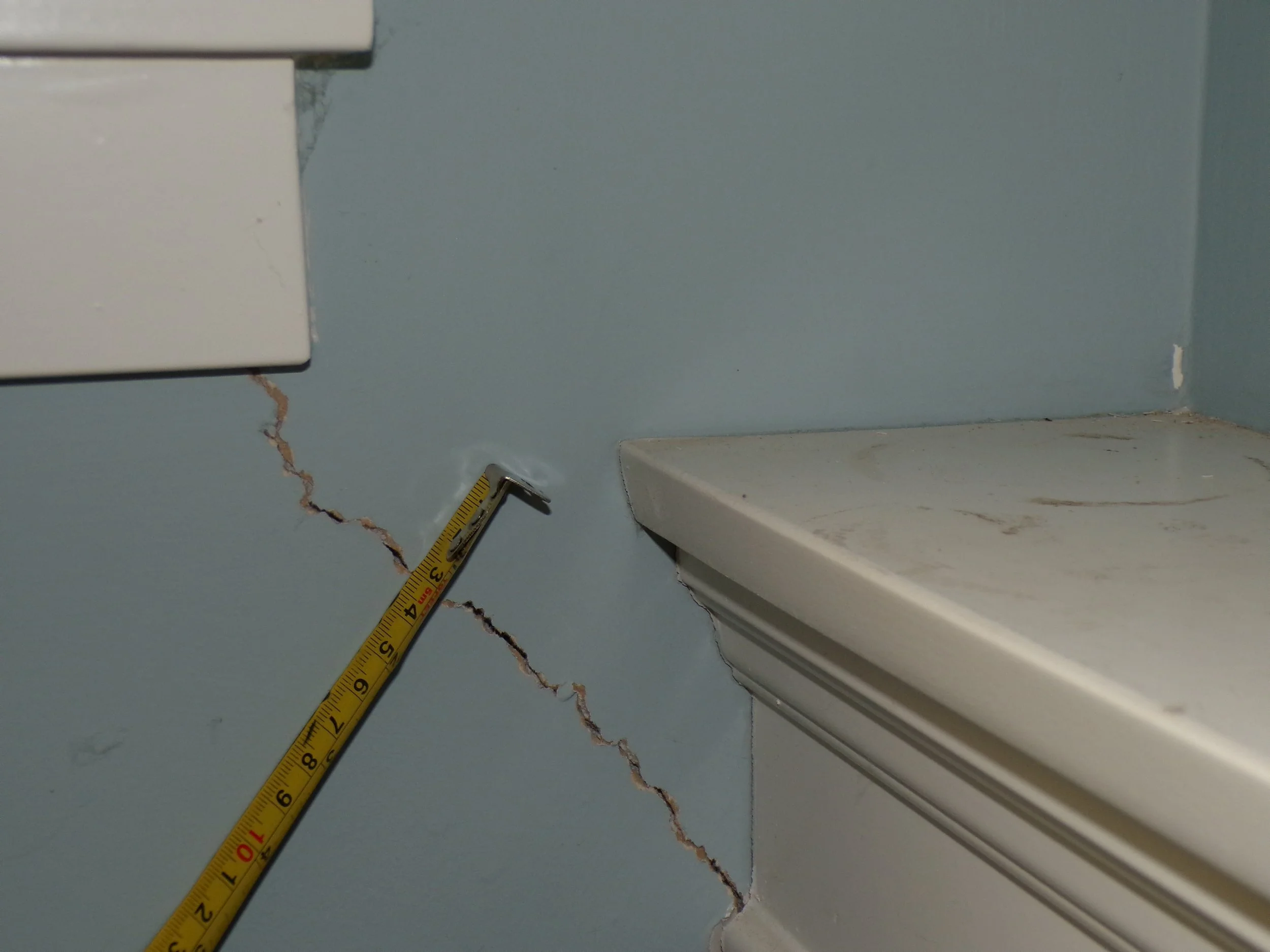

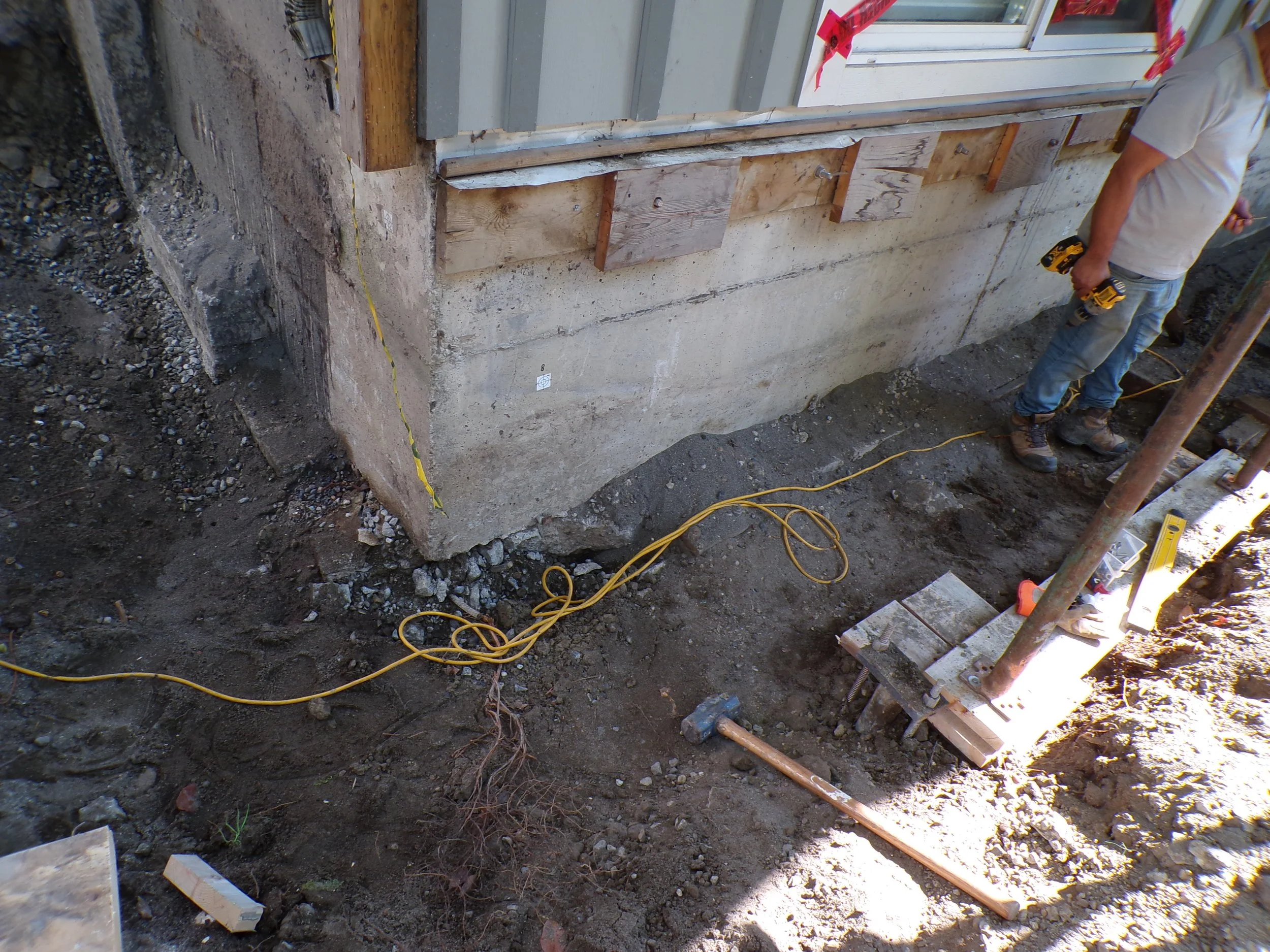

• A corner of a 4-unit townhouse building has settled due to soil shrinkage, with movements of up to 3 inches. The existing surface soil conditions are suspected of moving with seasonal moisture changes and are unlikely to reliably support the foundations.

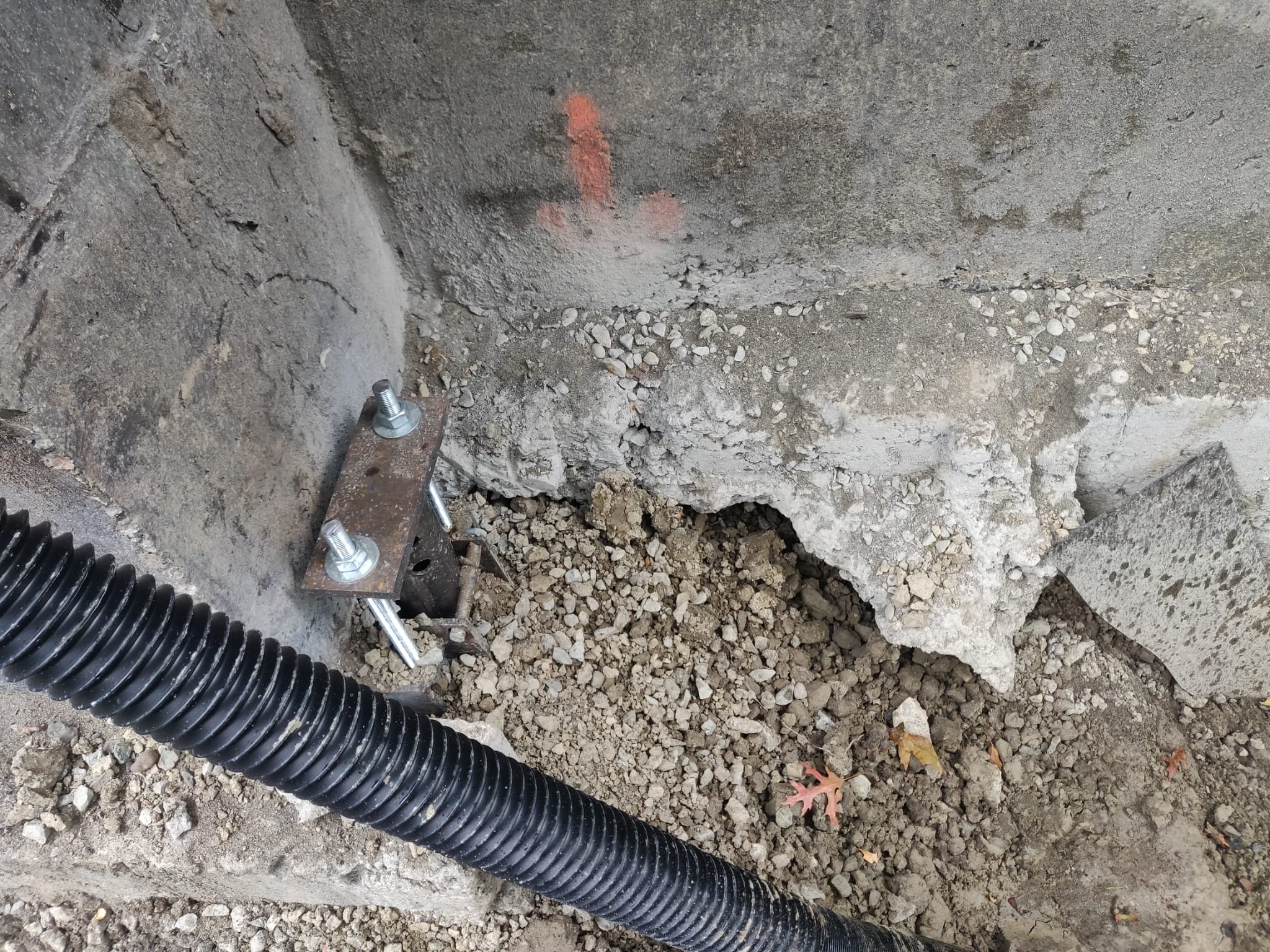

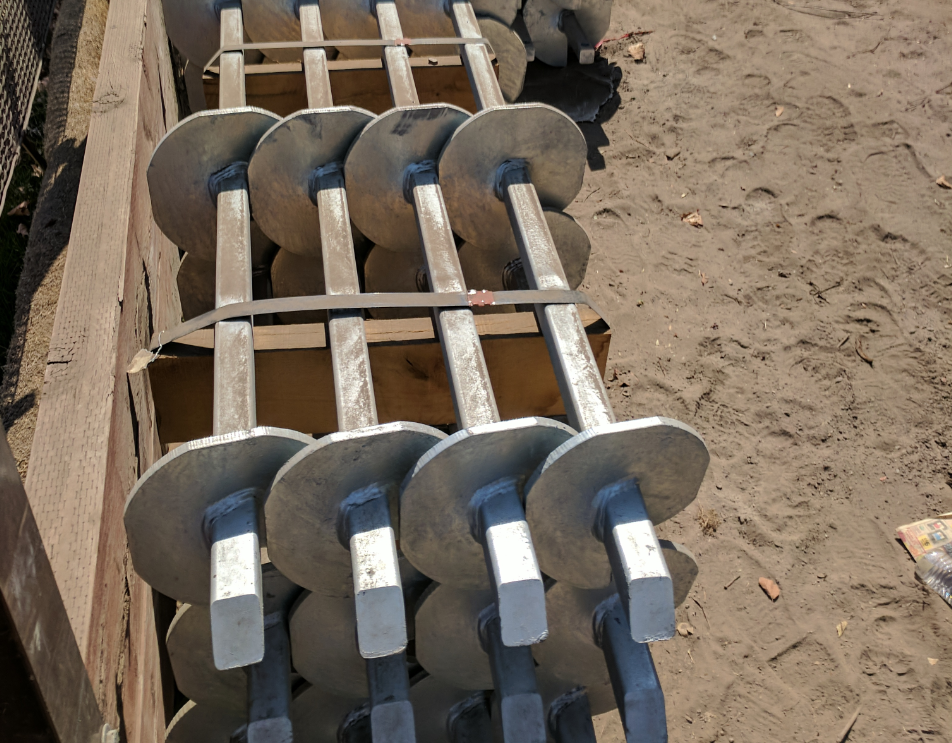

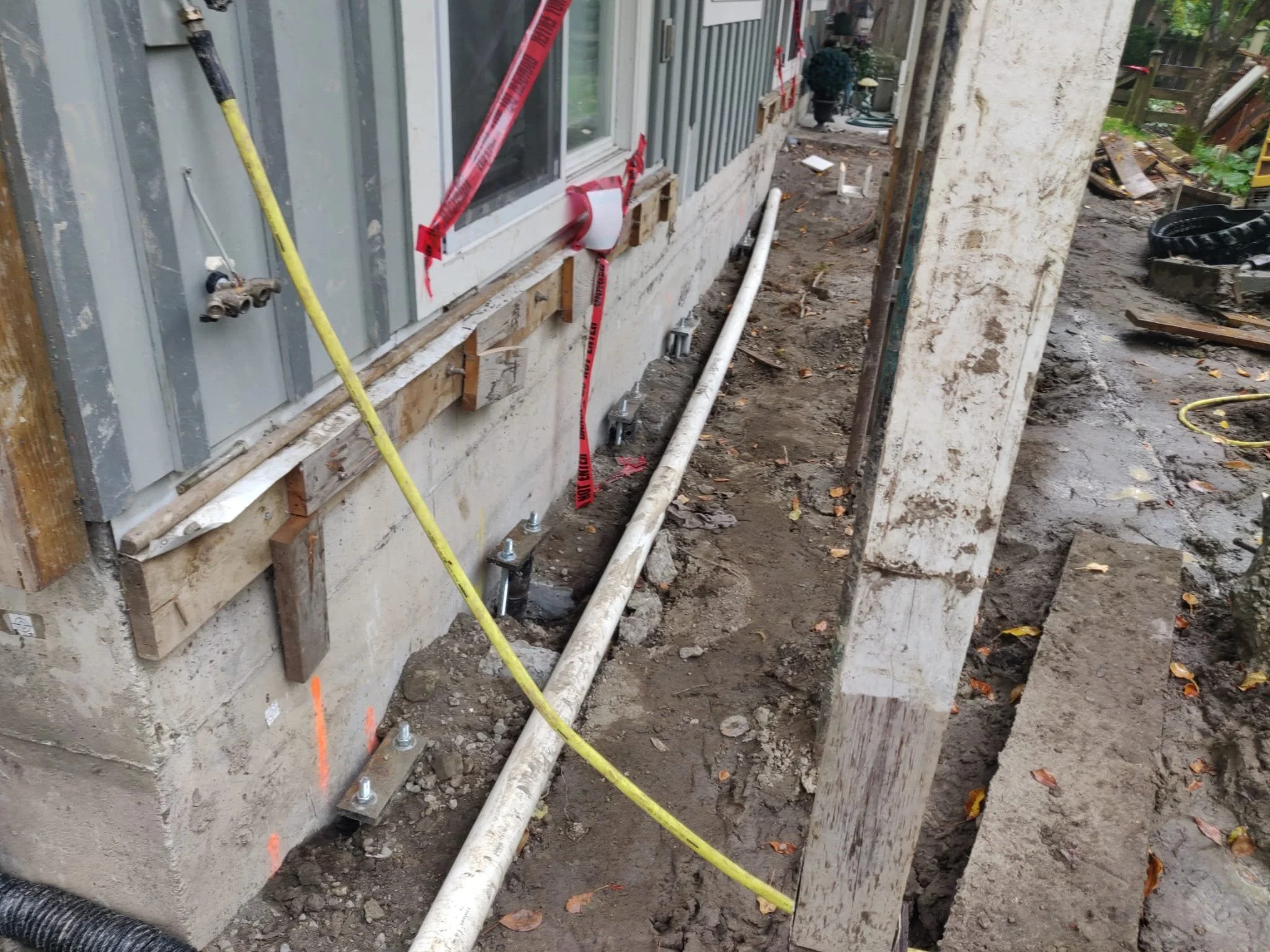

• We analyzed the structure to determine the factored loads of the building to be supported. We worked with a geotechnical engineer, and a helical pile contractor, to take out necessary building permits at the City of Langley and place deep helical pile foundations to work and support the building and stabilize it.

• A year later, survey results verified that the foundation is holding firm without abnormal movement, indicating a successful repair.

• Even though the project was relatively small in scope and is not normally within our routine, we provided a high level of customer service and competent engineering expertise at a reasonable cost to the client to help them through a tough situation. We have the expertise to be versatile to our client's needs when called upon.
